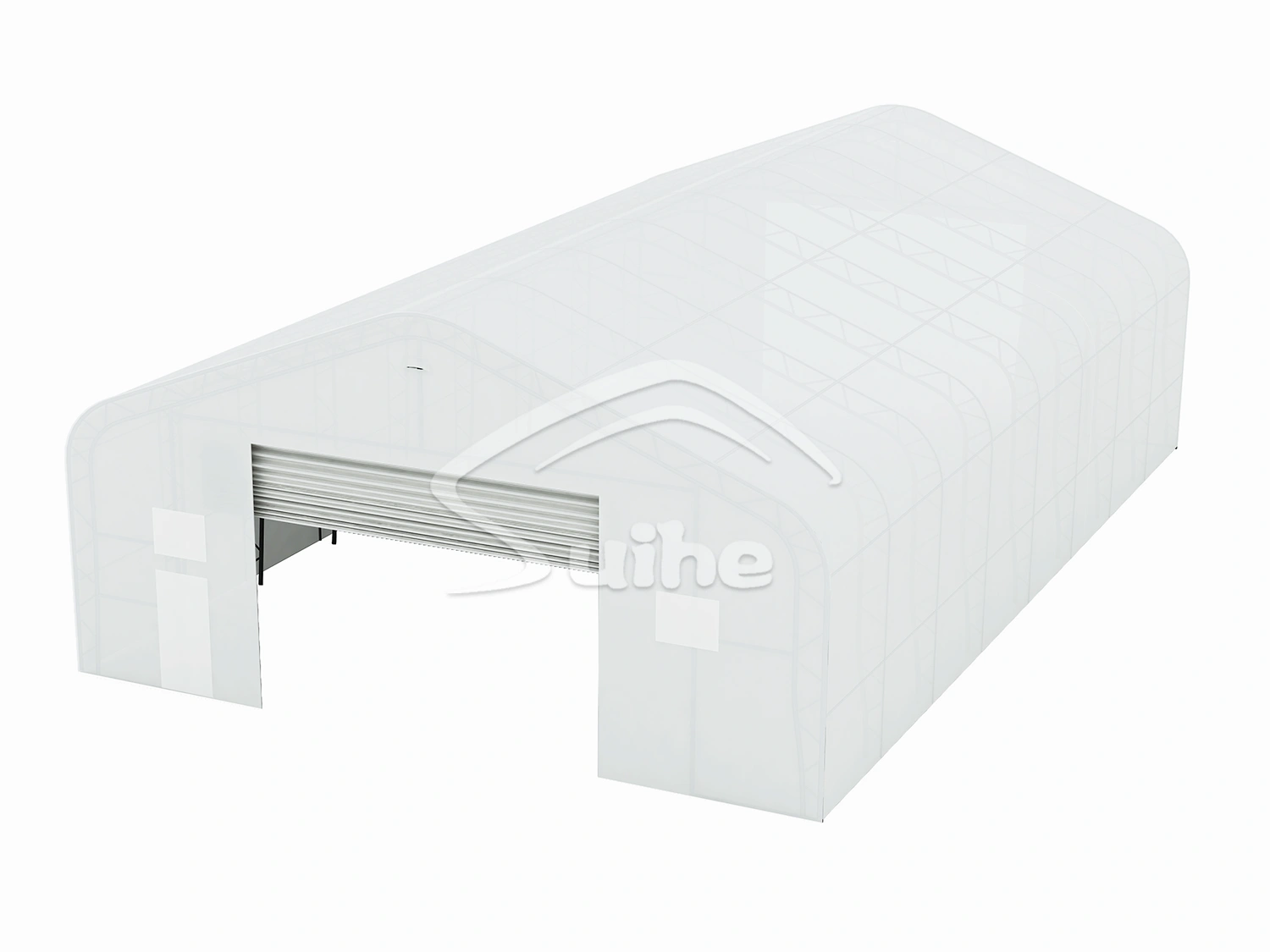

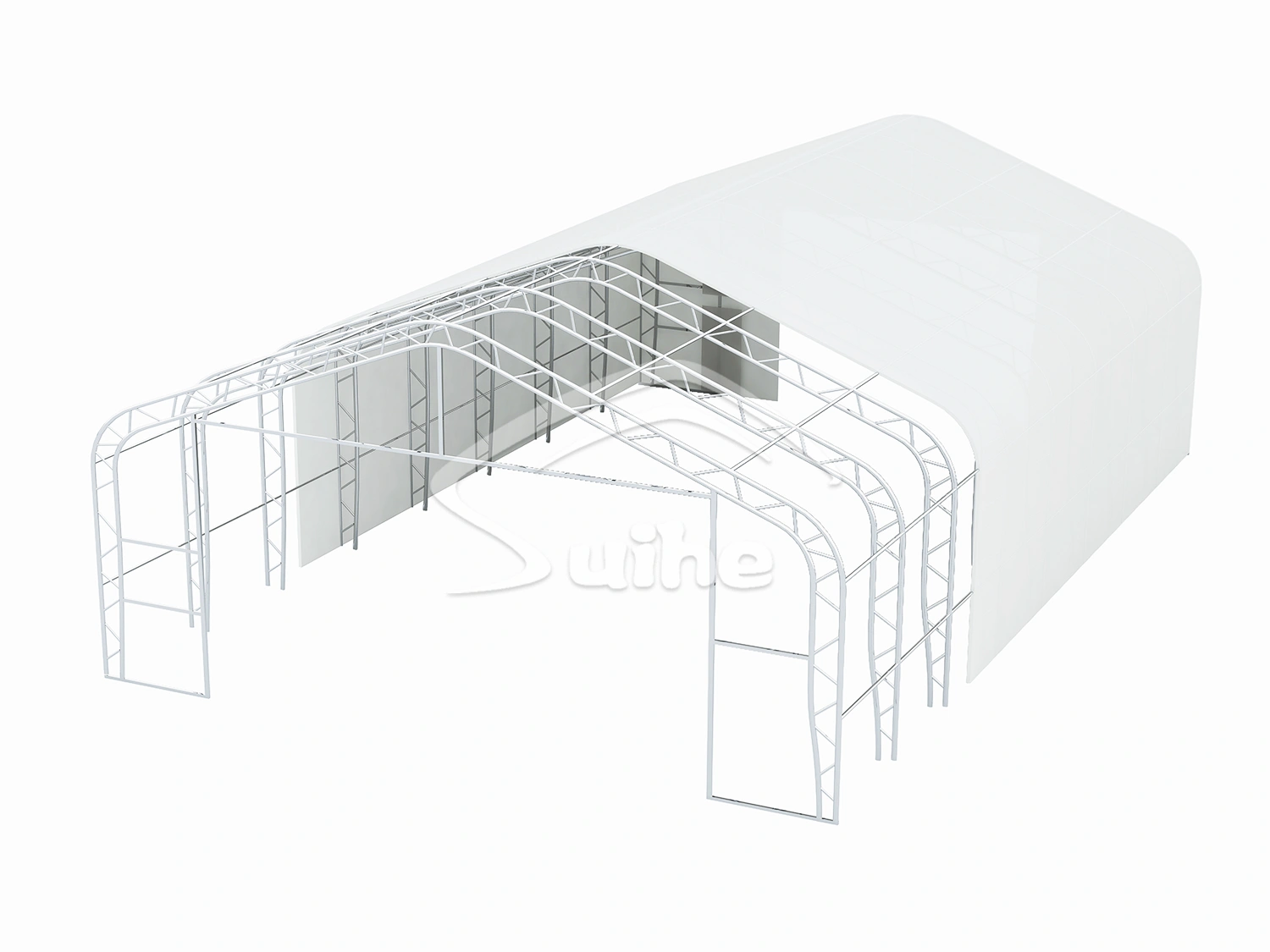

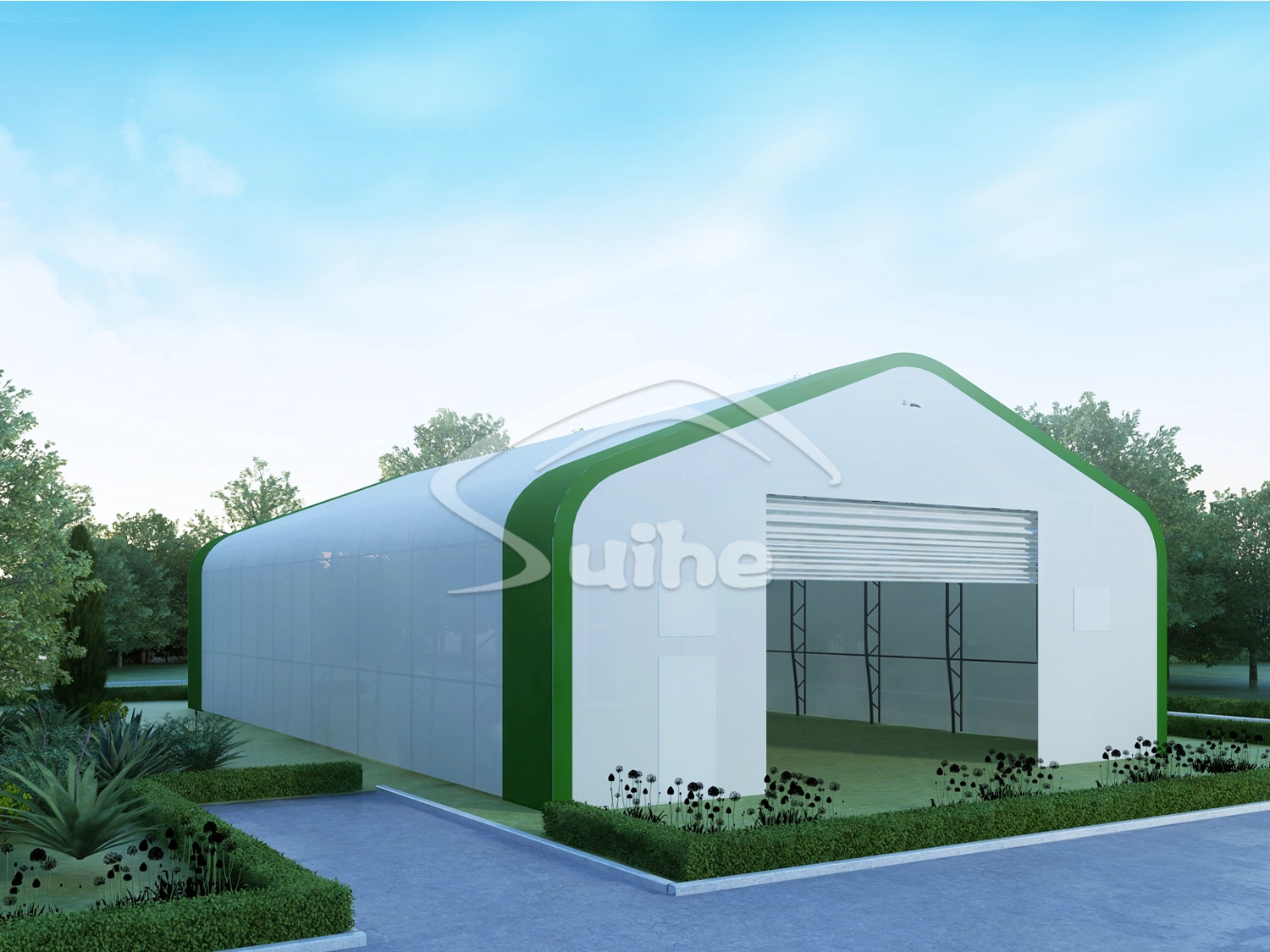

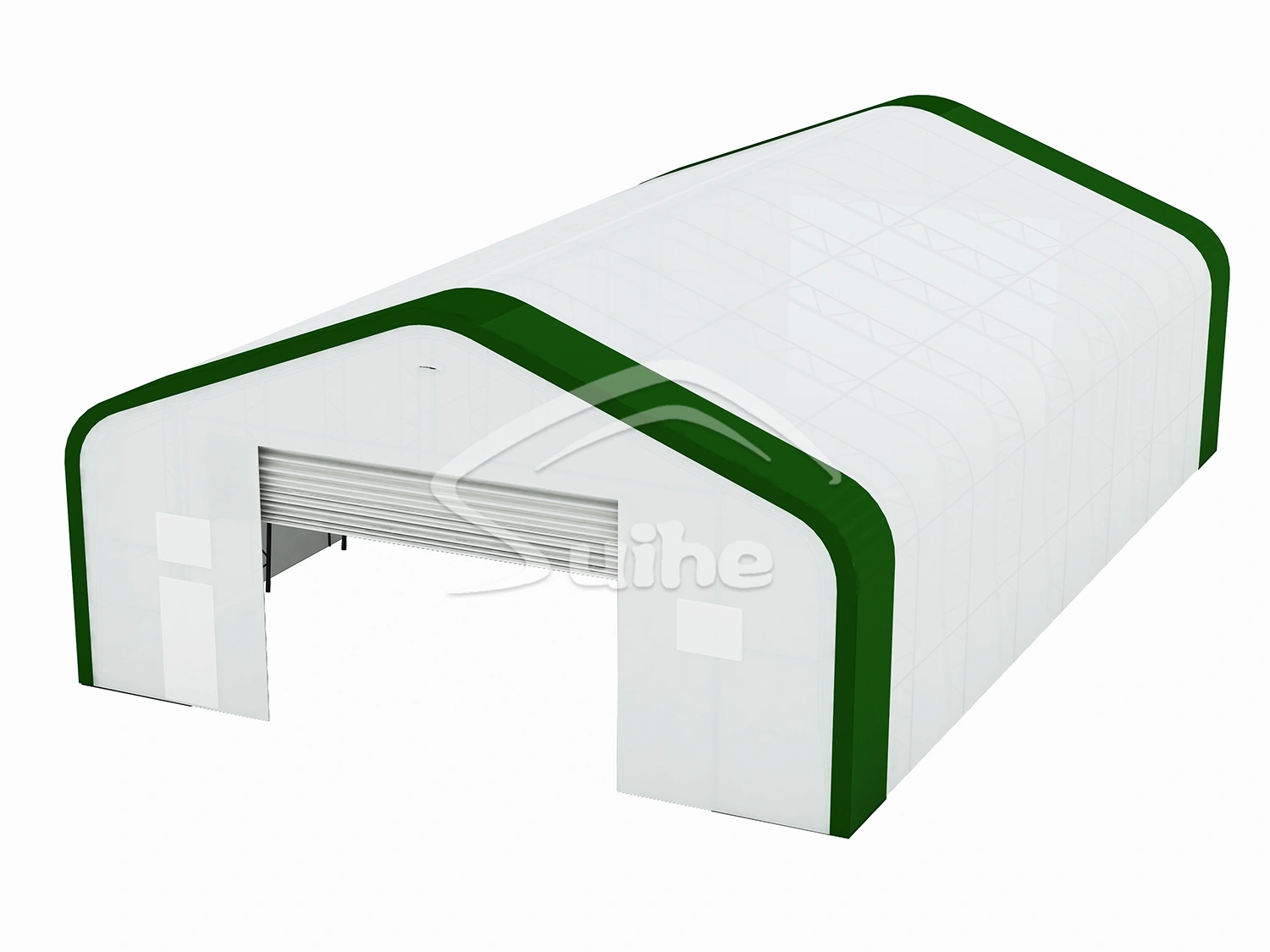

Double Truss PVC provides shelter on farms, construction sites, auto shops, and more. The whole structure is built with galvanized steel tubes which helps the storage shelter stand under the toughest weather. You don’t have to consider any other products when it comes to storing and protecting your valued things. This double-truss storage shelter is made for you.The peak shelter helps snow to slide off faster while the dome shelter provides more space on the top of the shelter.
However, both types of shelter have the same durability and efficiency. The PVC fabric is stronger than PE and is therefore more resistant to weather effects. Plus, PVC has a longer lifespan.
| Model | 5080 / 50100 / 50120 / 50150 |
|---|---|
| Width | 50'(15.25 m) Peak |
| Length | 80'(24.4 m) / 100'(30.5 m) / 120'(36.6 m) / 150'(45.75) |
| Center Height / Side Wall | 23'(7.015 m) / 3.05 m |
| Arch Space | 3.05 m |
| Arch & Purlin | 60 * 1.8 mm / 60 * 1.5 mm |
| Frame | Double Truss |
| Winch Door Size | 5.49 m * 4.89 m |
| Cover Select | |
|---|---|
| Economical Series | 10.58 oz/m² (300 g/m²) Polyethylene (PE Fabric) |
| Value Series | 15.87 oz/m² (450 g/m²) PVC Fabric |
| Commercial Series | 17.66 oz/m² (500 g/m²) PVC Fabric |
| Standard Series | 21.52 oz/m² (610 g/m²) PVC Fabric |
| Heavy Duty Series | 22.93 oz/m² (650 g/m²) PVC Fabric |
| 26.46 oz/m² (750 g/m²) PVC Fabric | |
| 31.75 oz/m² (900 g/m²) PVC Fabric |
Anchors are required to secure your shelter
Auger anchors are recommended for dirt, gravel, and asphalt surfaces
Foot plates are included and are required for concrete, wood, and steel mounting (or any surface)
Comes with installation guide and customer service support
All parts are pre-drilled for easy assembly
Heavy duty rope for main cover tie down
Rope holes with heavy duty grommets for best durability
Side wind brace supports
Protective plastic end caps for exposed tube ends
All customer installed shelters have a warranty limited to failure of parts.
No shelters are covered under the warranty during high winds or heavy snow loads. The customer must be pro active in ensuring neither causes a structure failure. These conditions and care are listed under our installation guidelines.
The installation of a shelter is critical to how it will stand up to heavy winds and snow. If the manufacturers installation guidelines are not adhered to, failure of the shelter could result in high winds and heavy snowfalls. If in doubt about any of the installation processes, please contact our office.
Failure to do semi annual inspections of the shelter and tighten any loose straps or tension wires may cause issues with wind and snow.
